Specifications
- Product codeCRS354-48P-4S+2Q+RM
- Architecture
- MIPSBE
- CPUQCA9531
- CPU core count1
- CPU nominal frequency650 MHz
- Switch chip model98DX3257
- Dimensions443 x 382 x 44 mm
- RouterOS license5
- Operating SystemRouterOS v7 / SwitchOS
- Size of RAM128 MB
- Storage size32 MB
- Storage typeFLASH
- MTBFApproximately 200'000 hours at 25C
- Tested ambient temperature-20°C to 60°C
Powering
- Number of AC inputs1
- AC input range100-240
- Number of PSU slots1
- Frequency (Hz)50-60
- Max power consumption800 W
- Max power consumption without attachments85 W
- Cooling type4 fans
PoE-out
- PoE-out portsEther1-Ether48
- PoE out802.3af/at
- Low voltage PoE-Out current limit1000 mA
- High voltage PoE-Out current limit570 mA
- Total output current27A at 26V OR 13.2A at 53V
- Total output power700W
Ethernet
- 10/100 Ethernet ports1
- 10/100/1000 Ethernet ports48
Fiber
- SFP+ ports4
- Number of 40G QSFP+ ports2
Peripherals
- Serial console portRJ45
Other
- CPU temperature monitorYes
- Current MonitorYes
- PCB temperature monitorYes
- Voltage MonitorYes
Certification & Approvals
- CertificationCE, EAC, ROHS
- IPIP20

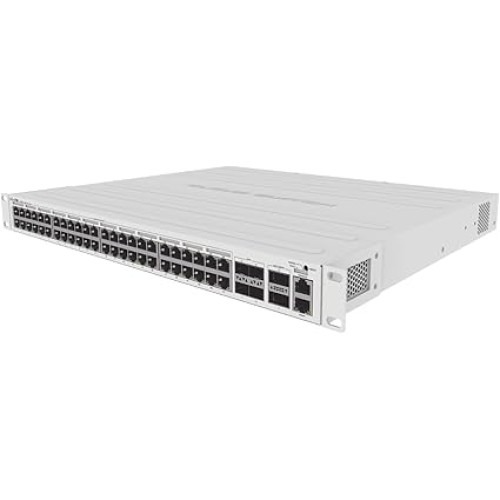

MIKROTIK CRS354-48P-4S+2Q+RM
- Brand: MIKROTIK
- Product Code: MIKROTIK CRS354-48P-4S+2Q+RM
- Availability: In Stock
-
950.00$
