Specifications
- Product codeRB5009UPr+S+IN
- Architecture
- ARM 64bit
- CPU88F7040
- CPU core count4
- CPU nominal frequency350-1400 (auto) MHz
- CPU Threads count4
- Switch chip model88E6393
- RouterOS license5
- Operating SystemRouterOS v7
- Size of RAM1 GB
- Storage size1 GB
- Storage typeNAND
- MTBFApproximately 200'000 hours at 25C
- Tested ambient temperature-40°C to 60°C
Powering
- Number of DC inputs3 (DC jack, PoE-IN, 2-pin terminal)
- DC jack input Voltage24-57 V
- 2-pin terminal input Voltage24-57 V
- Max power consumption150 W
- Max power consumption without attachments16 W
- PoE in802.3af/at (ether1), Mode B (ether2-ether8)
- Cooling typePassive
- PoE in input Voltage24-57 V
PoE-out
- PoE-out portsEther1-Ether8
- PoE out802.3af/at
- Low voltage PoE-Out current limit900 mA
- High voltage PoE-Out current limit440 mA
- Max total out (A)2.59 A
- Total output current2.28
- Total output power130
Ethernet
- 10/100/1000 Ethernet ports7
- Number of 1G Ethernet ports with Reverse PoE (PoE-in)7
- Number of 2.5G Ethernet ports1
- Number of 2.5G Ethernet ports with Reverse PoE (PoE-in)1
Fiber
- SFP+ ports1
Peripherals
- Number of USB ports1
- USB Power ResetYes
- USB slot typeUSB 3.0 type A
- Max USB current (A)1.5
Other
- CPU temperature monitorYes
- Current MonitorYes
- PCB temperature monitorYes
- Voltage MonitorYes
Certification & Approvals
- CertificationCE, EAC, ROHS
- IP20

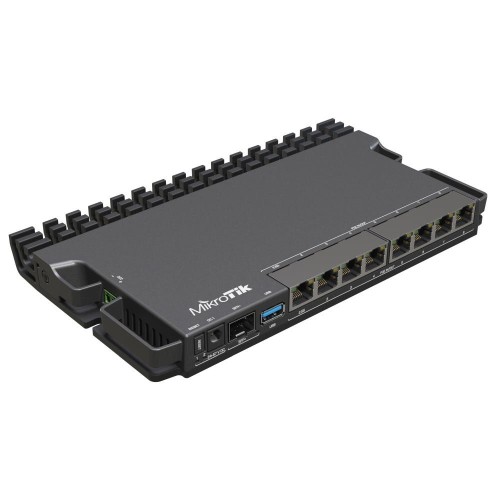

MIKROTIK RB5009UPr+S+IN
- Brand: MIKROTIK
- Product Code: MIKROTIK RB5009UPr+S+IN
- Availability: In Stock
-
270.00$
