Key features:

Compression:

H.264
Watermark
Ability to set recording parameters for each channel, including image resolution and quality, bit rate
Audio-video synchronization

Local monitoring

Screen division or sequential image displaying
Up to 4 privacy zones for each camera
Presets and patrol paths and for PTZ cameras
PTZ control via mouse by selecting some area of the image
Possibility of setting a timetable for patrol paths and starting points for PTZ cameras
Support for multiple PTZ protocols, including Pelco-p, Pelco-d WX, Pelco-D
Detection of video loss, motion detection in predefined areas of images
Quick playback option

Recording and playback

Multiple recording modes, including manual, scheduled or triggered by motion detection
8 periods of scheduled recording, individually configurable for each camera
Pre and post alarm options
Searching by motion detection in selected areas images - "Smart search",
Searching options include selection of date and time, channel, kind of recording (event)
Ability to set different recording parameters for alarm events
Timelines
Local playback of all channels simultaneously
Markings for quick searching of selected recordings
Digital zoom during live monitoring and playback
Defining image parameters for specific events
Reverse playback

Alarms

Exceptions include: disk overflow, disk failure, network failure, video loss, video incompatibility, IP conflict
Alarm response actions include: displaying full screen image from the active channel, beep, email notification
Possibility of scheduling alarm activation periods

Network operation

Built-in 10/100Mbps Fast Ethernet card
Support for IE, Google Chrome, Opera, Safari
Support for TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP protocols
Possibility of remote control, downloading of recordings via the network, remote search/playback/archiving
Remote configuration of parameters
Remote import/export of settings
Remote monitoring of the device status, alarms, log
Possibility of remote disk management, remote firmware update, remote operation control
Remote recording control (switching on/off)
Screenshot recording option

Other features

Ability to create user accounts with different access/management rights
System log recording all events; easy way to find events according to main categories: alarms, exceptions, operations etc.
Starting and stopping alarms manually or automatically
Ability to save and import/export DVR settings

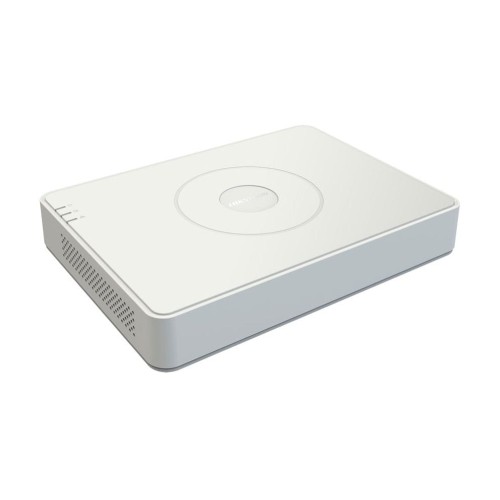

HIKVISION DS-7116HWI-SH
