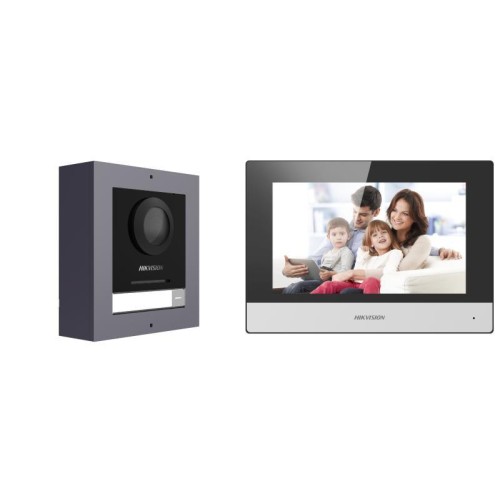

  • HIKVISION DS-KIS602(B)(O-STD)

  • Door station/System parameters
  • Operation systemEmbedded Linux operation system
  • Flash32 MB
  • RAM256 MB
  • Door station/Video parameters
  • Camera2MP HD camera
  • Night visionLow illumination IR supplement mode:3 m
  • Backlight compensationSupport
  • Digital noise reductionSupport
  • WDRSupport
  • Field of viewHorizontal: 146°, Vertical: 82°
  • Video Compression StandardH.264; H.265; MJPEG
  • Motion detectionSupport
  • Door station/Audio parameters
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Audio qualityNoise suppression and echo cancellation
  • Audio compression standardG711U、G711A、G726、AAC_LC、AAC_LD、OPUS、G722.1
  • Audio compression Rate64 Kbps
  • Door station/Network parameters
  • Network protocolTCP/IP, RTSP, IPV6,ONVIF
  • Wired network10/100 Mbps Ethernet
  • Door station/Device interfaces
  • Network interface1 RJ45
  • RS-4851 (1 for Hikvision's sub module communication)
  • Alarm input4 (2 exit butttons and 2 door contacts by default)
  • Debugging port1
  • Lock control2 (2 relay, max to 30 V, 2 A)
  • TAMPER switch1
  • Power interface12 VDC power output (max to 12 V, 500 mA)
  • Door station/General
  • Power consumption≤ 5 W
  • Working temperature-40° C to 60° C (-40° F to 140° F)
  • Working humidity10% to 95%
  • Dimension

    Device: 98 mm × 100 mm × 42 mm (3.86" × 3.94\" × 1.65\")

    Cover: 117 × 107 × 4 mm (4.61 × 4.21\" ×0.16\")

    Installation Frame: 117 × 107 × 32.7mm (4.61 × 4.21\" ×1.29\")"

  • InstallationSurface mounting
  • Protection levelIP65
  • Indicator0
  • Power supply

    IEEE802.3af, standard PoE

    12 VDC

  • Indoor station/System parameters
  • Operation systemEmbedded Linux operation system
  • Memory128 MB
  • Flash32 MB
  • Indoor station/Display parameters
  • Display screen7-inch colorful TFT screen
  • Display resolution1024 × 600
  • Operation methodCapacitive touch screen
  • Indoor station/Audio parameters
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Audio qualityNoise suppression and echo cancellation
  • Audio compression standardG.711 U, G.711 A
  • Audio compression Rate64 Kbps
  • Indoor station/Network parameters
  • Wired network10/100 Mbps self-adaptive
  • Wireless networkWi-Fi 802.11 b/g/n
  • ProtocolTCP/IP, SIP, RTSP
  • RS-4851 RJ-45 10/100 Mbps self-adaptive

  • Write a review

    Note: HTML is not translated!

HIKVISION DS-KIS602(B)(O-STD)

  • Brand: HIKVISION
  • Product Code: HIKVISION DS-KIS602(B)(O-STD)
  • Availability: In Stock

  • 161.00$


Tags: HIKVISION Face Recognition Terminals
