- Camera
- Image Sensor3 K CMOS
- Max. Resolution2960 (H) × 1665 (V)
- Min. Illumination0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/12.5 s to 1/50,000 s,NTSC: 1/15 s to 1/50,000 s
- Day & NightICR
- Angle AdjustmentPan: 0° to 360°,Tilt: 0° to 90°,Rotate: 0° to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm, 3.6 mm and 6 mm fixed lens
- Focal Length & FOV
2.8 mm, horizontal FOV: 105°, vertical FOV: 62°, diagonal FOV: 131°;
3.6 mm, horizontal FOV: 80°, vertical FOV: 48°, diagonal FOV: 112°；
6 mm, horizontal FOV: 58°, vertical FOV: 31°, diagonal FOV: 67°
- Lens MountM12
- Microphone
- Pickup DistanceIn a radius of up to 5 m
- Amount1
- Speaker
- Rated Power2 W
- Speaker RangeIn a radius of up to 5 m
- Illuminator
- Supplement Light TypeSmart,IR,White Light
- Supplement Light RangeIR: Up to 80 m,White Light: Up to 80 m
- Image
- Image Settings
Anti-banding,
Brightness,
Sharpness,
Smart IR
- Frame RateTVI: 3K @10 fps/12.5 fps/20 fps/25 fps, 4 MP @25 fps/30 fps, 1080P @25 fps/30 fps
- Day/Night ModeAuto/Color
- Wide Dynamic Range (WDR)Digital WDR
- Image Enhancement
DWDR,
BLC,
HLC,
Global,
HLS
- Noise Reduction2D DNR
- White Balance
Auto,
Manual
- Audio
- Audio FunctionEcho Cancellation, AI Noise Reduction, Automatic Gain Control
- Interface
- Video Output1 HD analog output
- AlarmFlashing Light Alarm (Red & Blue)
- General
- Power
12 VDC ± 25%, max. 11.8 W,
*You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), an 18 VDC adapter is required.
- MaterialMain body: Plastic; Front cover: Metal
- Dimension285.8 mm × 88.1 mm × 83.4 mm (11.25" × 3.46" × 3.28")
- Approx. 680 g (1.5 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
- CommunicationHIKVISION-C
- LanguageEnglish
- Approval
- ProtectionIP67

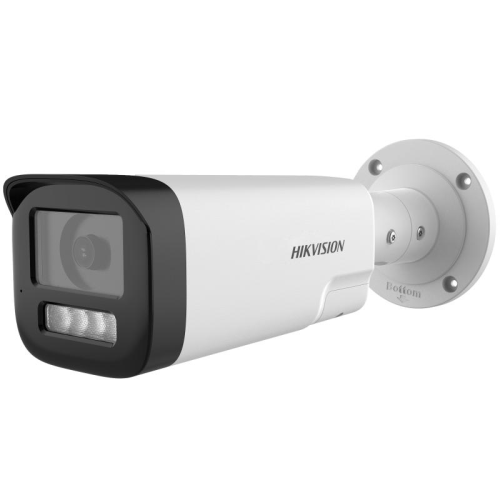

HIKVISION DS-2CE19K0T-LXTS
- Brand: HIKVISION
- Product Code: HIKVISION DS-2CE19K0T-LXTS
- Availability: In Stock
-
38.00$
