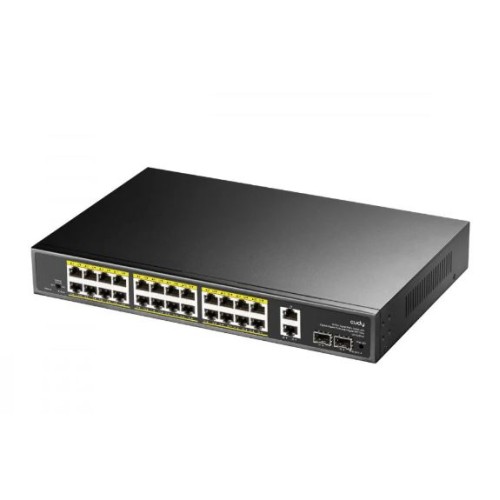

• 24-port Gigabit PoE+ switch, 2 GbE uplink ports, and 2 Gigabit SFP uplink slots
• 300W power supply and quiet cooling system
• Compliant with IEEE 802.3at/af standard; Each PoE port delivers up to 30W of power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices
• Intelligent PoE power management: automatically disconnects the last powered device when power exceeds the budget
• For long-distance networks, Extend mode can be enabled to connect clients up to 250 meters away, limiting the speed of ports 17-24 to 10 Mbps
• Hardware watchdog is active on all PoE ports (monitors link activity on ports 1-24 and attempts to reboot connected clients that have been inactive for 5 minutes, ensuring system stability) in Extend mode
• EMC protections (to improve service reliability and reduce downtime caused by surges and ESD); ESD: Contact 6kV; Air 8kV; Surge: DM 2KV, CM 4KV power
• Sturdy metal enclosure supports desktop or rack mounting via brackets (included)

Technical Specifications

• Power Supply: AC 100-240V 50/60Hz; 300W
• Maximum Power excluding PoE: 20W
• PoE Protocols: IEEE802.3i (10Base-T); IEEE802.3u (100Base-TX); IEEE802.3ab (1000Base-T); IEEE802.3z (1000Base-X); IEEE802.3x (Flow Control); IEEE 802.3af PoE and 802.3at PoE
• Maximum power per PoE port: 30 W
• Supported speed and distance:
• Cat. 3 cable or higher: 100 meters at 10 Mbps
• Cat. 5 cable or higher: 100 meters at 100 Mbps
• Cat. 5e cable or higher: 100 meters at Gigabit
• Cat. 5e cable or higher: 250 meters at 10 Mbps
• 250-meter transmission is only available on extended mode ports when extended mode is enabled
• MAC: 8192
• Maximum switching capacity: 56 Gbps
• Maximum forwarding rate: 41,664 Mpps
• Packet buffer memory: 3 Mbit

Environmental characteristics

• Operating temperature: -10 ~ 50°C
• Storage temperature: -40°C ~ 70°C
• Operating humidity: 10 ~ 90%, non-condensing
• Storage humidity: 5 ~ 95%, non-condensing

Dimensions

• Width: 320 mm
• Depth: 207 mm
• Height: 44 mm

Package Contents

• 24-Port Gigabit PoE+ Switch with 2 GBE Uplinks and 2 Gigabit SFPs, ICU-GS1026PS2
• Power cord
• Rack-mount kit
• User manual
