Product image

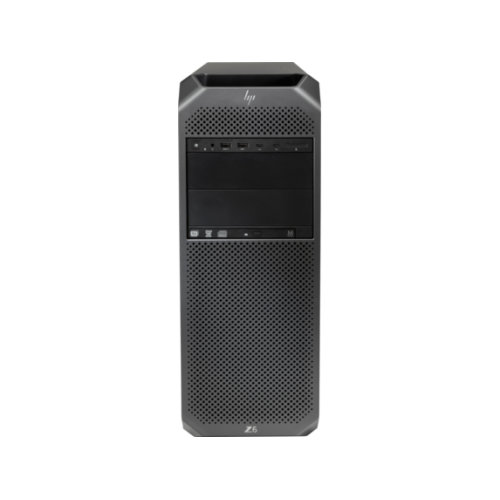

Figure : HP Z6 G4 Workstation
Processors
Specifications | Description |
Intel Xeon Platinum 8180 | 2.5 GHz 38.50 MB cache and 28 cores Up to 3.8 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 205 W Supports Intel vPro technology |
Intel Xeon Platinum 8160 | 2.1 GHz 33 MB cache and 24 cores Up to 3.7 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 150 W Supports Intel vPro technology |
Intel Xeon Gold 6154 | 3.0 GHz 24.75 MB cache and 18 cores Up to 3.7 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 200 W Supports Intel vPro technology |
Intel Xeon Gold 6152 | 2.1 GHz 30.25 MB cache and 22 cores Up to 3.7 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 140 W Supports Intel vPro technology |
Intel Xeon Gold 6148 | 2.4 GHz 27.50 MB cache and 20 cores Up to 3.7 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 150 W Supports Intel vPro technology |
Intel Xeon Gold 6142 | 2.6 GHz 22 MB cache and 16 cores Up to 3.7 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 150 W Supports Intel vPro technology |
Intel Xeon Gold 6140 | 2.3 GHz 24.75 MB cache and 18 cores Up to 3.7 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 140 W Supports Intel vPro technology |
Intel Xeon Gold 6136 | 3.0 GHz 24.75 MB cache and 12 cores Up to 3.7 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 150 W Supports Intel vPro technology |
Intel Xeon Gold 6134 | 3.2 GHz 24.75 MB cache and 8 cores Up to 3.7 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 130 W Supports Intel vPro technology |
Intel Xeon Gold 6132 | 2.6 GHz 19.25 MB cache and 14 cores Up to 3.7 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 140 W Supports Intel vPro technology |
Intel Xeon Gold 6130 | 2.1 GHz 22 MB cache and 16 cores Up to 3.7 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 125 W Supports Intel vPro technology |
Intel Xeon Gold 6128 | 3.4 GHz 19.25 MB cache and 6 cores Up to 3.7 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 115 W Supports Intel vPro technology |
Intel Xeon Gold 5120 | 2.2 GHz 19.25 MB cache and 14 cores Up to 3.2 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2400 MT/s data rate 105 W Supports Intel vPro technology |
Intel Xeon Gold 5118 | 2.3 GHz 16.5 MB cache and 12 cores Up to 3.2 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2400 MT/s data rate 105 W Supports Intel vPro technology |
Intel Xeon Gold 5122 | 3.6 GHz 16.5 MB cache and 4 cores Up to 3.7 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 105 W Supports Intel vPro technology |
Intel Xeon Silver 4116 | 2.1 GHz 16.5 MB cache and 12 cores Up to 3.0 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2400 MT/s data rate 85 W Supports Intel vPro technology |
Intel Xeon Silver 4114 | 2.2 GHz 13.75 MB cache and 10 cores Up to 3.0 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2400 MT/s data rate 85 W Supports Intel vPro technology |
Intel Xeon Silver 4112 | 2.6 GHz 8.25 MB cache and 4 cores Up to 3.0 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2400 MT/s data rate 85 W Supports Intel vPro technology |
Intel Xeon Silver 4108 | 1.8 GHz 11 MB cache and 8 cores Up to 3.0 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2400 MT/s data rate 85 W Supports Intel vPro technology |
Intel Xeon Bronze 3106 | 1.7 GHz 11 MB cache and 8 cores Supports DDR4 memory up to 2133 MT/s data rate 85 W Supports Intel vPro technology |
Intel Xeon Bronze 3104 | 1.7 GHz 8.25 MB cache and 6 cores Supports DDR4 memory up to 2133 MT/s data rate 85 W Supports Intel vPro technology |
Chipset | Intel C622 |
NOTE:Multicore is designed to improve performance of certain software products. Not all customers or software applications necessarily benefit from use of this technology. 64-bit computing system required. Performance and clock frequency vary depending on application workload and hardware and software configurations. Intel numbering is not a measurement of higher performance.When ordering two processors, the second processor must be the same as the first.
Graphics
Feature | Description |
Entry 3D | NVIDIA Quadro P400 2GB Graphics NVIDIA Quadro P600 2GB Graphics AMD FirePro W2100 2GB Graphics NOTE: |
Mid-range 3D | NVIDIA Quadro P1000 4GB Graphics NVIDIA Quadro P2000 5GB Graphics AMD Radeon Pro WX 3100 4GB Graphics AMD Radeon Pro WX 4100 4GB Graphics Supports AMD Enduro Technology Microsoft DirectX 12 (Shader Model 5.0) and OpenGL 4.3 capable NOTE: |
High End 3D | Radeon Pro WX7100 8GB Graphics NVIDIA Quadro P4000 8GB Graphics NVIDIA Quadro P5000 16GB Graphics NOTE: NVIDIA Quadro P6000 24GB Graphics NOTE: |
Graphics cable adapters | HP DisplayPort to Dual Link DVI Adapter HP DisplayPort to DVI-D Adapter HP DisplayPort to DVI-D Adapter (2-pack) HP DisplayPort to DVI-D Adapter (4-pack) HP DisplayPort to DVI-D Adapter (6-pack) NVIDIA SLI Graphics connector NOTE: |
Displays
Feature | Description |
Displays | HP Z Display Z22n G2 HP Z Display Z23n G2 HP Z Display Z24i G2 HP Z Display Z24n G2 HP Z Display Z24nf G2 HP Z Display Z27n G2 HP Z Display Z27s (4K display) NOTE: |
Storage and drives
Feature | Description |
Serial Attached SCSI (SAS) Hard drive | HP 300GB 15K SAS SFF Hard Drive (controller add-in card required) |
SATA Hard Disk Drive (HDD) | HP 500GB SATA 6Gb/s 7200 Hard Drive HP 500GB 7200rpm SATA SFF SED Hard Drive HP 1TB SATA 6Gb/s 7200 Hard Drive HP 1TB Enterprise SATA 7200 HDD HP 2TB SATA 6Gb/s 7200 Hard Drive HP 4TB SATA 7200 Hard Drive NOTE: |
SATA Solid State Drives (SSD) | HP 256GB SATA SSD HP 512GB SATA SSD HP 1TB SATA SSD HP 2TB SATA SSD HP 256GB SATA SED Opal2 Solid State Drive HP 512GB SATA SED Opal2 Solid State Drive HP Enterprise Class 240GB SATA SSD HP Enterprise Class 480GB SATA SSD |
PCIe Solid State Drives (SSD) | HP Z Turbo Drive 256GB MLC (Z4/Z6 G4) SSD Kit HP Z Turbo Drive 512GB MLC (Z4/Z6 G4) SSD Kit HP Z Turbo Drive 1TB MLC (Z4/Z6 G4) SSD Kit HP Z Turbo Drive 256GB TLC (Z4/Z6 G4) SSD Kit HP Z Turbo Drive 512GB TLC (Z4/Z6 G4) SSD Kit HP Z Turbo Drive 1TB TLC (Z4/Z6 G4) SSD Kit HP Z Turbo Drive 256GB SED (Z4/Z6 G4) SSD Kit HP Z Turbo Drive 512GB SED (Z4/Z6 G4) SSD Kit HP Z Turbo Drive Quad Pro HP Z Turbo Drive Quad Pro 2x256GB PCIe SSD HP Z Turbo Drive Quad Pro 2x512GB PCIe SSD HP Z Turbo Drive Quad Pro 2x1TB PCIe SSD NOTE: |
