- Features:
- Ethernet WAN allows to use as an DSL modem router or stand-alone wireless router
- Compatible with VDSL2, ADSL2/2+, ADSL, fiber and cable services for complete future-proofing
- Fast Ethernet ports for the reliable internet performance
- VDSL/ADSL WAN multi service for IPTV support
- PPTP VPN server and PPTP/L2TP VPN client support
- Four independent SSIDs for flexible and secure Wi-Fi network configuration - Specifications:
- Network Standard:
- IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e, IPv4, IPv6 - Product Segment:
- N300 complete networking : 300 Mbps - Wi-Fi Data Rate:
- 802.11b : 1, 2, 5.5, 11 Mbps
- 802.11g : 6,9,12,18,24,36,48,54 Mbps
- 802.11n : up to 300 Mbps - xDSL Data Rate:
- ‧VDSL2/ADSL2+/ADSL2/ADSL multimode
- ‧Support Annex A/B/I/J/L/M
- ‧Support all VDSL2 profiles -8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a
- ‧VDSL2 interface compliance with ITU-T G.993.2
- ‧ITU-T G.992.1 (G.dmt), Annex A, and B Compliant
- ‧ITU-T G.992.2 (G.lite), Annex A, and B Compliant
- ‧ANSI T1.413 Compliant
- ‧ITU-T G.992.3 (ADSL2) Compliant, Annex A, B, L, and M
- ‧ITU-T G.992.5 (ADSL2+) Compliant, Supporting Annex A, B, and M
- ‧ITU-T G.993.2 Compliant, Annex A, B
- ‧ITU-T G.993.5 (Vectoring)
- ‧ITU-T G.998.4 (G.inp) Improved impulse noise protection
- ‧ATM and PTM (dual-priority)
- VDSL2 Upstream: 150Mbps, Downstream: 200Mbps
- ADSL2+ Upstream: 3.3Mbps, Downstream: 24Mbps
- ADSL2 Upstream: 3.5Mbps, Downstream: 12Mbps - Features:
- ‧DHCP server, firewall/NAT, DynDNS
- ‧VPN server(PPTP)
- ‧VPN client(PPTP/L2TP)
- ‧Dual WAN Fail over/Fail back/Load balance
- ‧Traffic monitor/Quality of Service(QoS)
- ‧DSL spectrum
- ‧IPTV
- ‧DSL feedback mechanism
- ‧Save/restore configuration file
- ‧WiFi Bandwidth Limiter - Antenna:
- External dBi antenna x 2
*Antenna signal power may vary by region due local regulations and requirements - LED Indicator:
- Power, Internet, LAN x 4, xDSL, 2.4 GHz Wi-Fi - Button:
- WPS Button, Reset Button, Power Button, Wireless on/off Button - Ports:
- 1 x RJ11 for xDSL
- 4 x RJ45 10/100 BaseT for LAN - Operating Frequency:
- 2.4GHz - Operation Channel:
- 13 Europe (ETSI) - Memory:
- 16MB FLASH,64MB DDR2 RAM - Output Power:
- b mode : 20.5 dBm
- g mode : 17 dBm
- n mode : 17 dBm - Security:
- 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK - Management:
- Web-based GUI configuration
- Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
- UPnP IGD 1.0
- Auto VPI/VCI detection
- Configuration backup and restore
- Diagnostics
- Log & Trace function - VPN Support:
- IPSec Pass-Through
- PPTP Pass-Through
- L2TP Pass-Through
- PPTP server
- PPTP client
- L2TP client - Power Adapter:
- AC Input : 110 ~240 V(50~60HZ)
- DC Output : 12 V/0.5 A
- Power Consumption : 6 W Max. - Certificates:
- CE - Dimensions:
- 19 x 23.5 x 3.5 ~ cm (WxDxH) (Without Bezel) - Weight:
- 225 g (Device Only) - OS Support:
- Windows® 10
- Windows® 8.1
- Windows® 8
- Windows® 7
- Windows® Vista
- Windows® 2000
- Windows® XP
- Mac OS X 10.4
- Mac OS X 10.4
- Mac OS X 10.5
- Mac OS X 10.6
- Mac OS X 10.7
- Mac OS X 10.8 - Package Content:
- ‧DSL-N16 Wireless VDSL/ADSL Modem Router
- Network cable
- Phone cable
- Power adapter
- Quick start guide

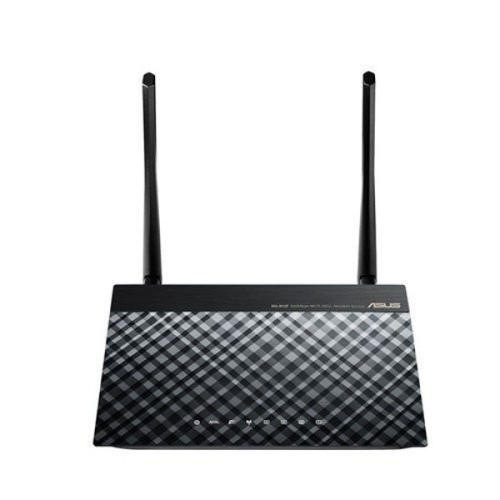

ASUS MODEM ROUTER DSL-N16 300
- Brand: ASUS
- Product Code: DSL-N16 Wireless VDSL/ADSL Modem Router
- Availability: In Stock
