- Hardware features :
- Processor : 1.8GHz quad-core CPU and three co-processors .
- Standards and Protocols : 802.11a/b/g/n/ac, 802.3ab .
- Ports :
1x GE WAN .
8 x GE LAN .
2 x USB3.0 .
- Button :
1 x Power .
1 x Wi-Fi On/Off .
1 x WPS .
1 x Reset .
1 x LED On/Off .
- LED Panel : 1 x LED with multiple state . - Dimensions & Weight :
- Dimensions with antennas (W x D x H) : 11.3 X 11.3 X 7.2 in .
- Dimensions without antennas (W x D x H) : 9.5 X 9.5 X 2.2 in .
- Weight with antennas : 3.3lb (1.5kg) .
- Weight without antennas : 2.65lb (1.2kg) .
- Antenna : 8 external and detachable antennas .
- Chipset :
MU-MIMO .
Beamforming .
Airtime Fairness .
RangeBoost .
NitroQAM . - Wireless features :
- Frequency :
1000Mbps @ 2.4GHz .
2167Mbps @ 5GHz .
2167Mbps @ 5GHz . - Software features :
- Management :
Tether App .
Andriod 4.1 or higher .
iOS 8 or higher .
- System Tools :
Time Settings .
Diagnostics .
Fw OTA Upgrade .
Config backup/resotre .
Administration .
Syslog .
SNMP .
Statistics .
LED Control .
- Basic Function :
Network Map(Internet Status/Client List/Speedtest) .
Internet Settings .
Wireless Settings .
USB Sharing Settings(USB Storage Sharing/FTP Server/Print Server/Media Server) .
HomeCare(Parental Control/Antivirus/QoS) .
Guest Network Settings .
TP-Link Cloud Settings .
Multiple Languages .
- Protocols : IPv4, IPv6 .
- Advanced Functions :
Working Mode (Router Mode or AP Mode) .
Wireless Schedule .
Time Machine .
TP-Link DDNS .
Parental Controls/Antivirus/QoS .
IPv6 .
VPN Server (OpenVPN and PPTP Servers) .
NAT Forwarding(DMZ/UPnP...) .
Link aggregation(WAN/LAN) .
Airtime Fairness .
SmartConnect .
Portal Authentication for Guest Wi-Fi .
- Supported Operating Systems :
Time Settings .
Diagnostics .
Fw OTA Upgrade .
Config backup/resotre .
Administration .
Syslog .
SNMP .
Statistics .
LED Control . - Security :
- Antivirus :
Malicious Content Filter .
Intrusion Prevention System .
Infected Device Quarantine .
- Access Control : Device-based whitelist/blacklist .
- Wi-Fi Security :
Open .
WEP .
WPA-PSK .
- Firewall Features :
Open .
WEP .
WPA-PSK . - Others :
- Certification : FCC、CE、DFS、VCCI、JRF、JPA、RoHS .
- Environment :
Operating Temperature : 0℃~40℃ (32℉ ~104℉) .
Storage Temperature : -40℃~70℃ (-40℉ ~158℉) .
Operating Humidity : 10%~90% non-condensing .
Storage Humidity : 5%~90% non-condensing .
- Power Supply : 100-240V 50/60Hz . - Color :
- Black .

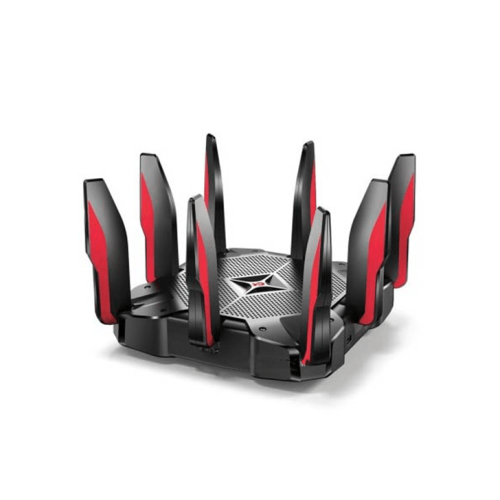

TP-LINK GAMING ROUTER ARCHER C5400X
- Brand: TP-Link
- Product Code: TP-LINK GAMING ROUTER ARCHER C5400X
- Availability: In Stock
